Dock Kings

Cantilever Deck Bracket Kit

Cantilever Deck Bracket Kit

Regular price $799.00 CAD
Regular price Sale price $799.00 CAD
Sale Sold out

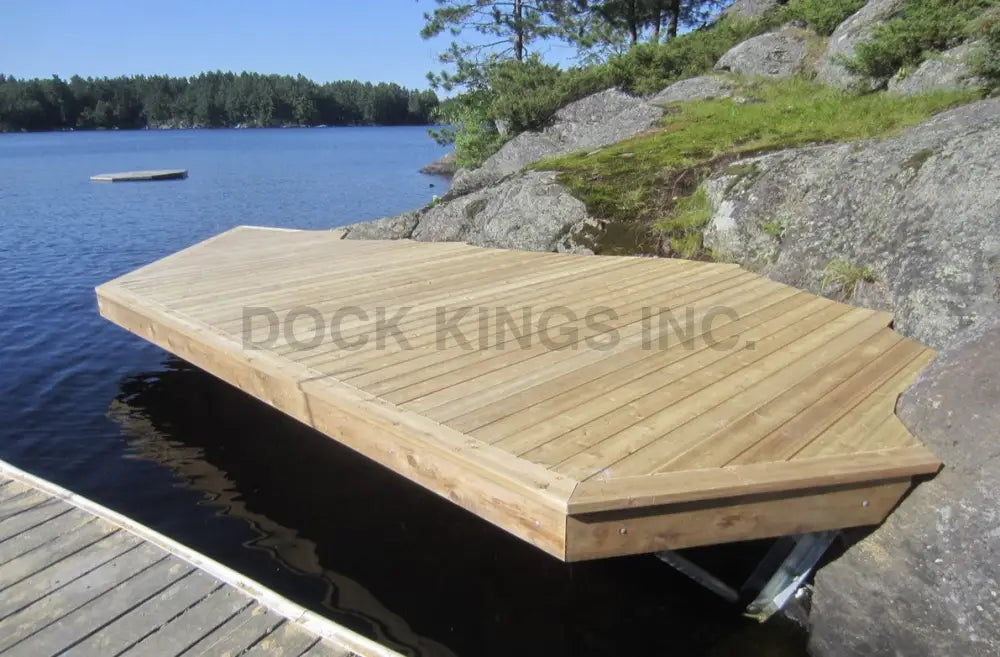

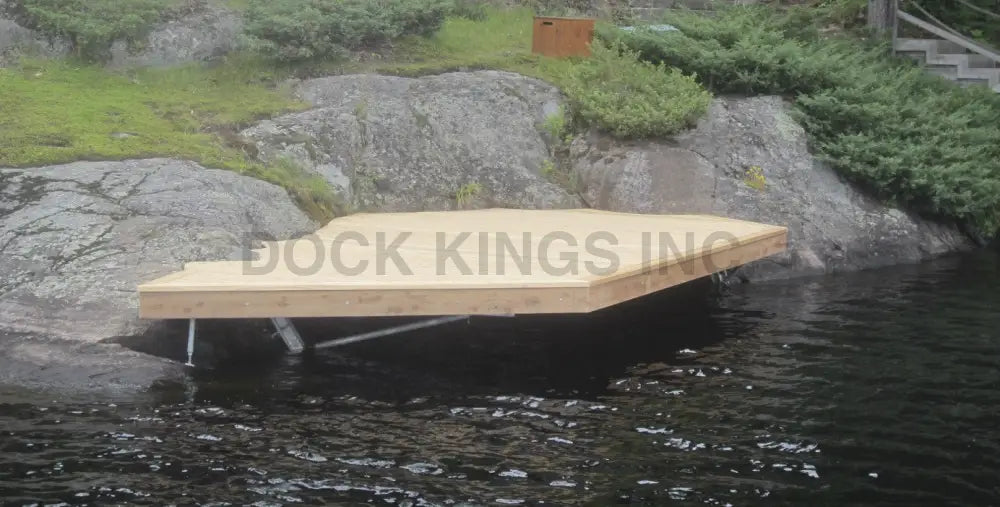

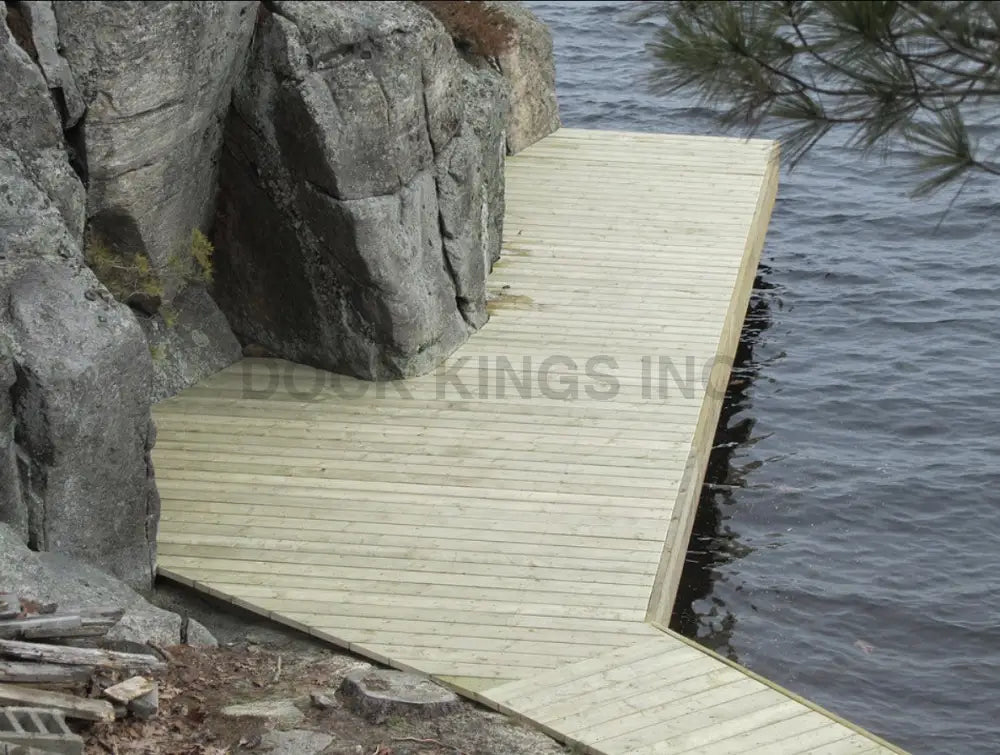

Maximize your shoreline potential with our new deck cantilever bracket system kit.

This innovative solution opens up previously inaccessible deck installation locations, expanding your living space to the water's edge.

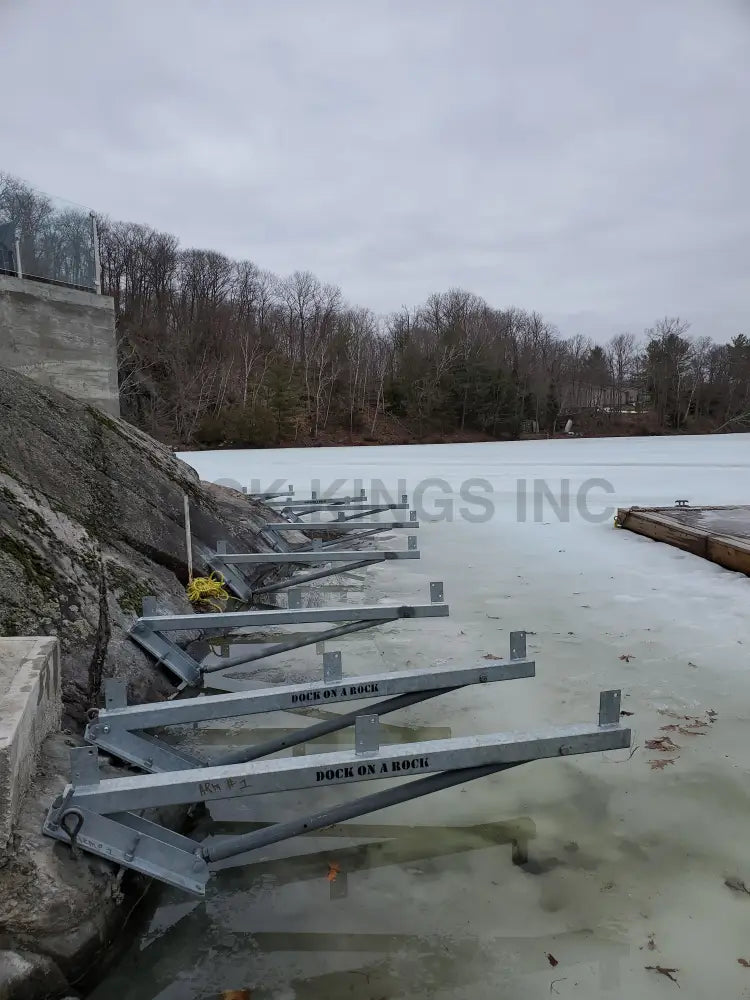

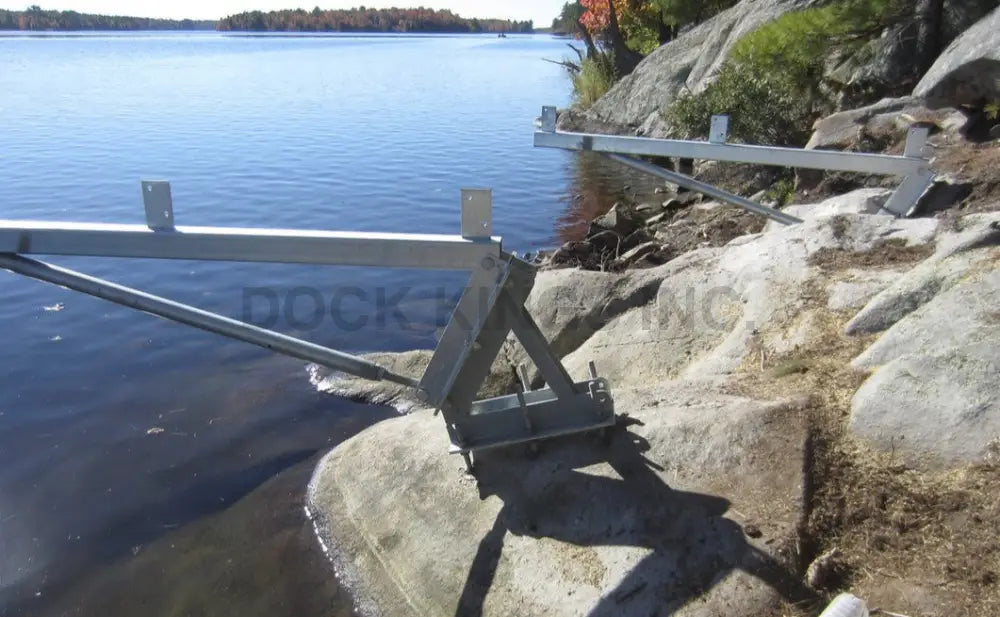

Cantilevered above the water our brackets are completely adjustable, and permanently mounted to any inclined solid rock surface.

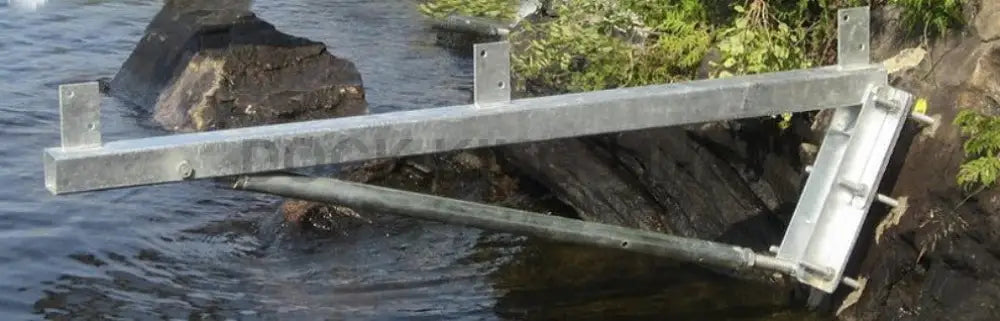

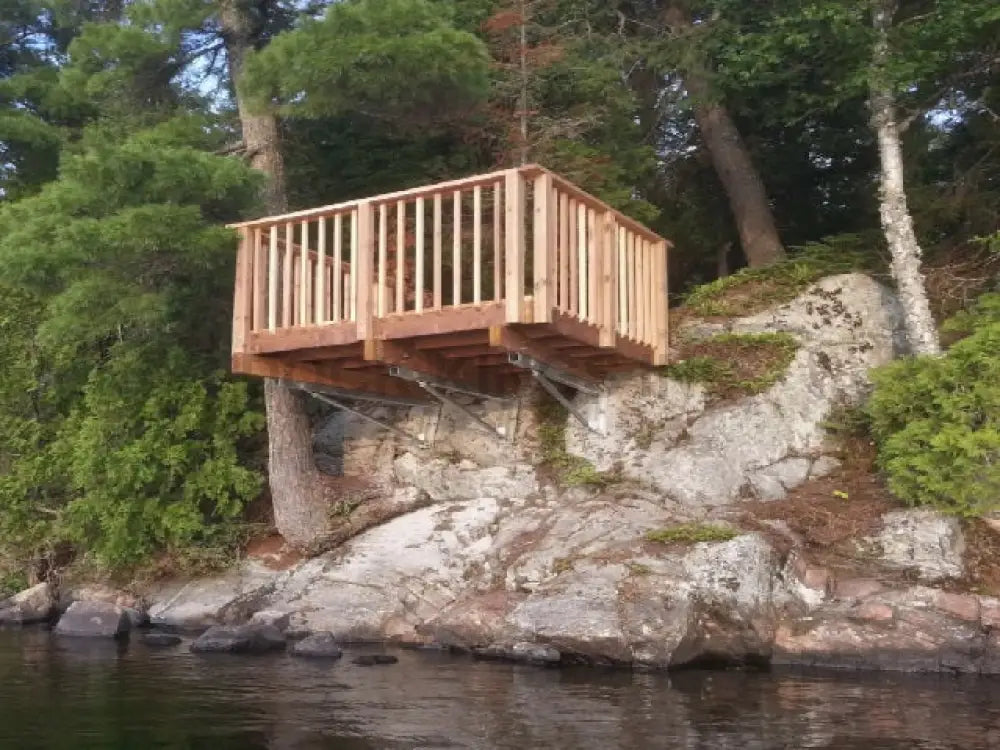

The Cantilever Deck Bracket Kit offers both a short and long arm kit, with the short arm (36") allowing for adjustments between 25-90 degrees and the long arm (72") allowing for adjustments between 40-90 degrees.

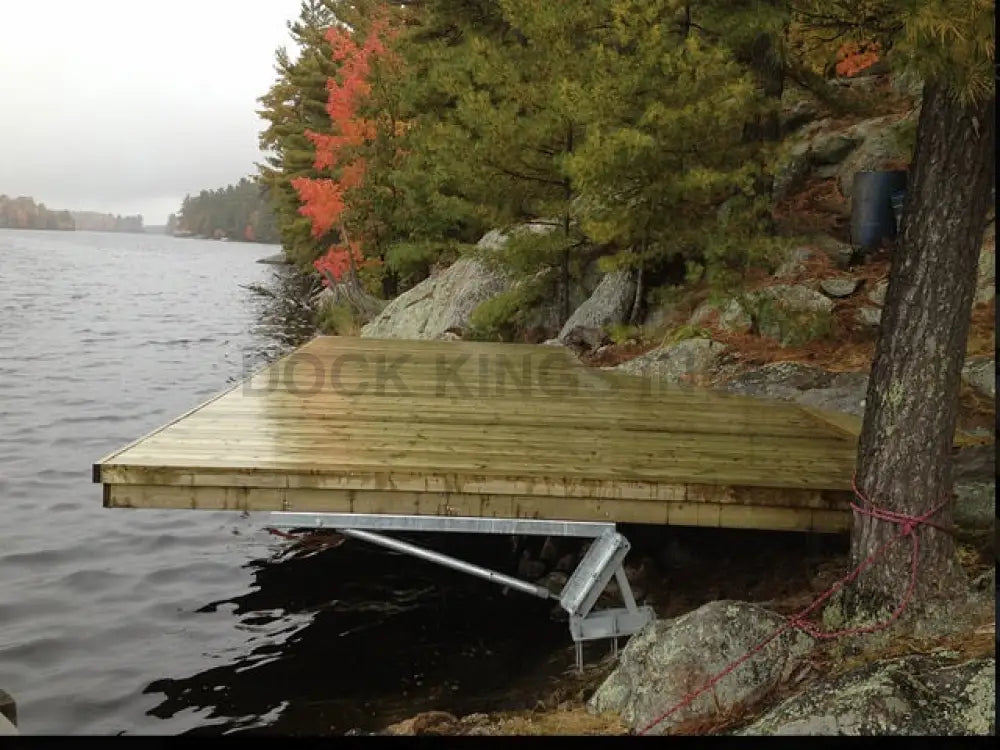

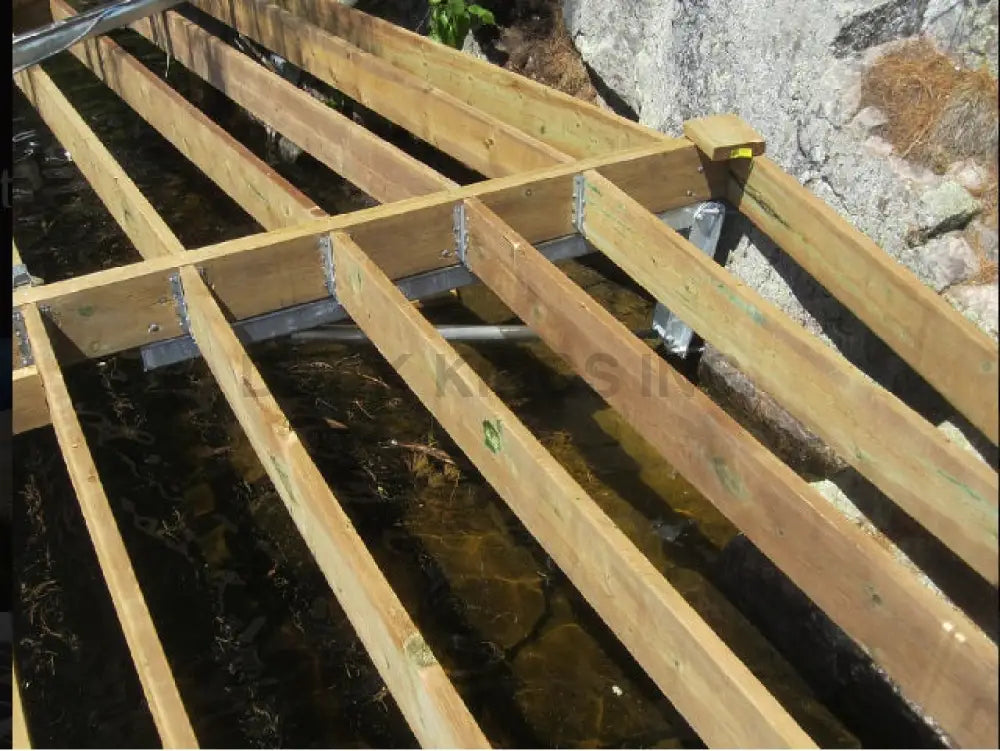

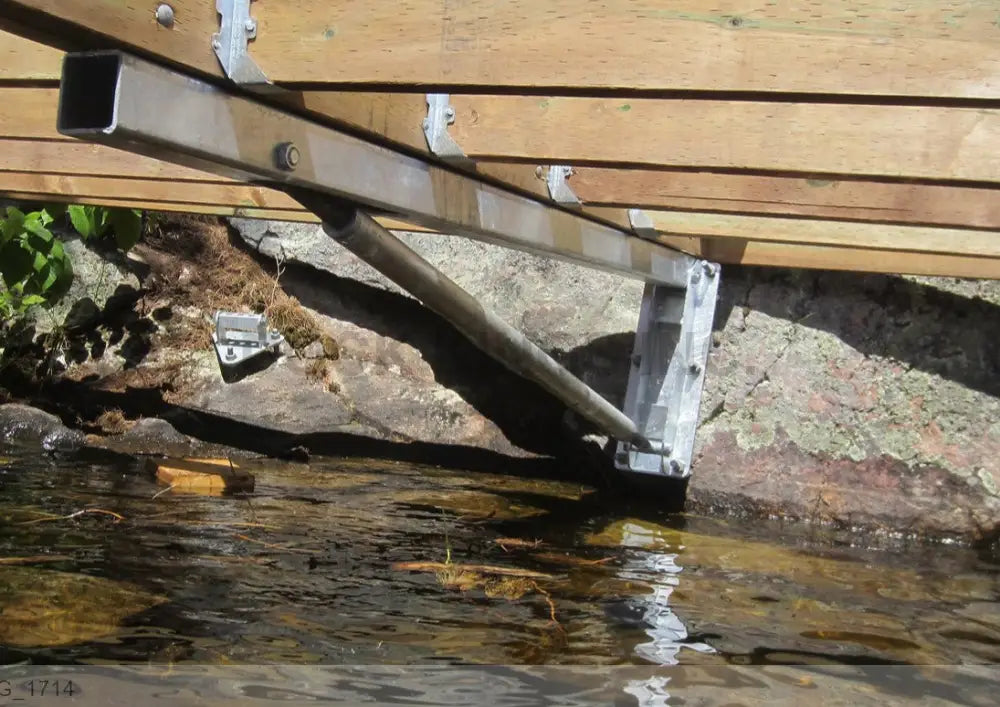

When used with 2"x 8" dimensional lumber, these brackets can provide a cantilever of up to 24" and a platform depth of 96".

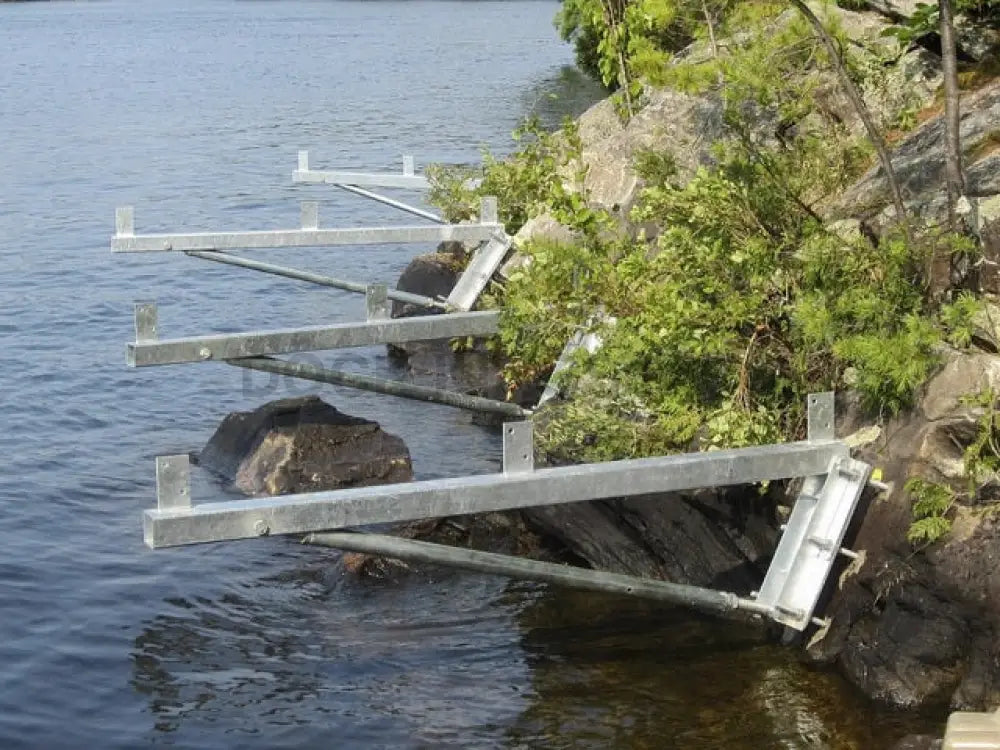

Depending on the curvature of the rockface, these brackets can be placed 6'-8' apart.

Being cantilevered above the water most environmental concerns have been eliminated.


  • Our patented brackets are manufactured in Ontario, Canada, using state-of-the-art manufacturing processes.

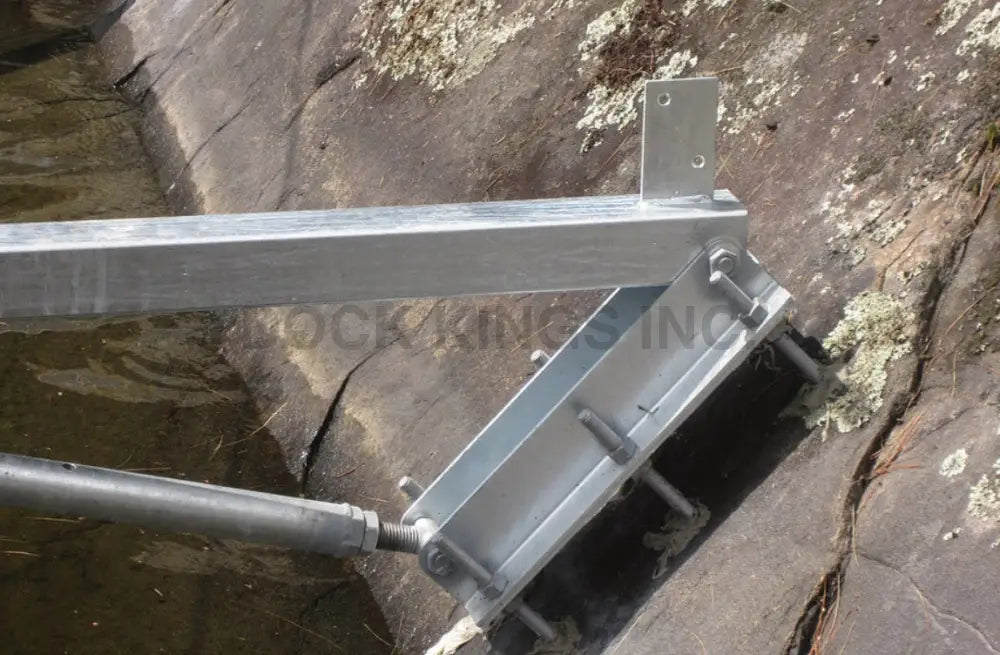

  • Formed laser cut hot dipped galvanized A36 steel plate forms the base, and galvanized HSS steel tube is used in the horizontal arm and adjustment barrels.
  • All our bracket kits include structural grade SAE 4140 (A193 B7) galvanized mounting hardware, and acrylic chemical anchor.

Please note that this item cannot be shipped and is available for pickup only.

Once your order is placed, you will receive a confirmation email when it is ready for pick up.
